Vertic/Clow Safety Line System

[ Vertic/Clow Safety Line System ] [ Vertic/Clow Safety Line Components ]

The Vertic/Clow Safety Line System is the only system on the market with a single wire which combines both vertical and horizontal safety line systems.

Ideal for roof access on inclined slopes such as a glass roofs, domes, port cranes or roller coasters the combination fall arrest system is an anchor device allowing safe movement at height.

Safety Line System for Safe Working at Height

Vertical Safety Line System

The vertical safety line is a rigid anchor device which allows safe vertical movement at height. It can be used on the most varied of structures eg. Glass Roofs; Facades, Ladders, Pylons and Cranes.

Features include:

  • The runner slides through intermediate supports automatically
  • No unwanted blocking, either while climbing up or down
  • Hooking and unhooking possible at any location on the wire rope
  • Entirely made of stainless steel, 8mm wire rope
  • Tension level indicator on the lowest part
  • A shock absorber is integrated into the top of the system and is reusable
Vertical Safety Line

Only 5 components are required to make a vertical installation. Most of these are also used on the horizontal safety line system.

The Vertic/Clow Safety Line in use as a vertical safety line for safe pylon access

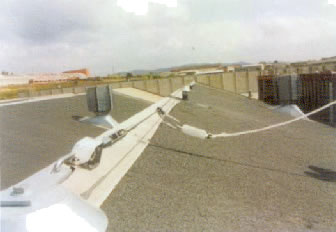

The Vertic/Clow Safety Line systems in use as a horizontal safety line system Horizontal Safety Line

Adobe AcrobatFor a downloadable *.pdf version of the Vertic/Clow Safety Line System brochure please right click Vertic/Clow Safety Line System and select 'Save Target As...'. (File size: 1Mb)

A copy of Adobe Acrobat Reader is required to view this file and can be downloaded from Adobe using this Adobe Reader link.

For more information on the components involved in the Vertic/Clow Safety Line please see the safety line components page.

The Vertic/Clow Safety Line System provides safe working at height

Safety Line Fall Arrest FunctionProviding a fall arrest function which can be used from 15° this is the only fall arrester available on the market that has a fall arrest in both directions.

With a minimum breaking load of greater than 20KN its stainless steel construction provides excellent corrosion resistance.

Horizontal Safety Line System

The horizontal safety line system allows safe horizontal movement at height and with the horizontal safety line system it is possible to go through intermediate supports at a distance.

Hooking and unhooking is possible at any location on the wire and it is possible to unhook the runner without taking the lanyard off.

Safety Line System BracketAlso contained within the system is a mobile intermediate bracket which allows working on both sides of a roof to take place without disconnection.

A 12m span is allowed between supports for two users.

Downloadable *.pdf version of the Vertic/Clow Safety Line System Brochure
