Need a Vacuum Glass Lifter for use with your Mini Crawler Crane ?

We supply the MRT4 Dual Circuit (320kg) Glass Lifter.

An extremely versatile unit, the MRT4 Glass Lifter offers 360° rotation with a 90° tilt from any rotation position and features dual circuit vacuum system technology for additional safety.

Three different frame configurations are possible using the extension arms and the moveable pads - enough to cover most load sizes.

If required a variable length lifting arm can also be specified allowing easy fitting beneath soffits or overhangs.

The key features of the MRT4 Glass Lifter include:

  • Dual independent vacuum circuits with two vacuum reserve tanks and two non-return valves
  • Vacuum gauge for each circuit
  • On-board maintenance free vacuum pump
  • Audible and visual low vacuum alert
  • Four extension arms allowing alternate configurations for different loads
  • Manual 360° lockable rotation (continuous)
  • Manual tilting from vertical to horizontal
  • Rechargeable 12v battery complete with integral 110v or 240v charger
  • On-board battery energy gauge

Technical Specification: MRT4 Glass Lifter


Vacuum system
Dual Circuit:
 1 pump, 2 vacuum tanks
Suitable for Lifting
Material Properties:
Surface:
Example:
Gastight
Smooth
Glass, Plastic Boards, Ceramic Plates, Sheet Metals, Coated Boards

Surface:
 Smooth

Example:
 Glass, Plastic Boards, Ceramic Plates, Sheet Metals, Coated Boards
Suction Cup Type
Approx. Diameter:
 305mm
Suction Cup Quality
Description:
 Black rubber, non abrasion resistant, heat resistant up to 100° C
Number of Cups
Cups:
 4
Loading Capacity of Frame
Vertical:
Horizontal:
 320Kg
320kg
Weight of Lifter
Approximately:
 58kg
Structural Depth
Approximately:
 292mm
Output
Approximately:
 1.5m3/h
Voltage
Pump:
Battery Charger:
12v DC from rechargeable battery
110v/240v 50/60Hz single phase factory selectable
Standard Accessories
Standard:
 4 x extension arms
Optional Accessories
Optional:
 Variable length lifting arm, extra length extension arms

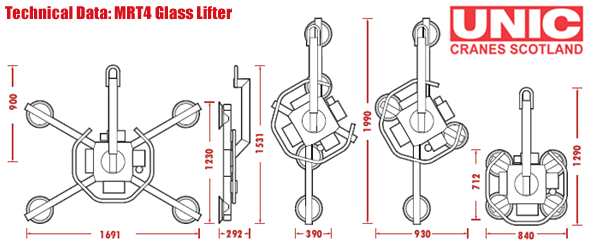

MRT4 Technical Data
