Mini Crane Models

UNIC Mini Cranes are specifically designed to address the issues involved with restricted access and confined working spaces - for these reasons size, weight, reach and capacity are absolutely crucial - UNIC Mini Cranes are designed to meet these exact requirements.

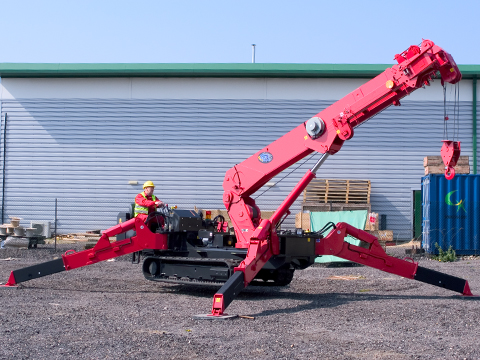

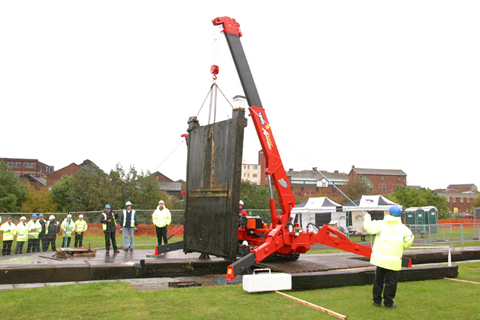

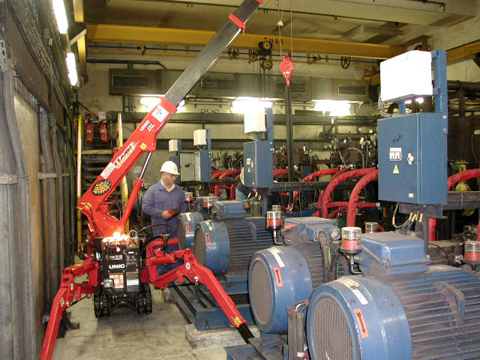

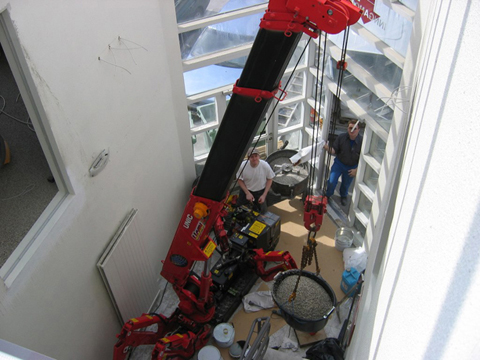

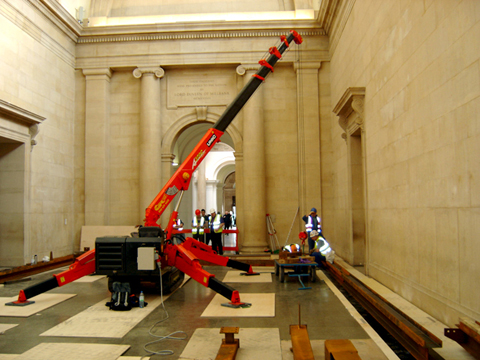

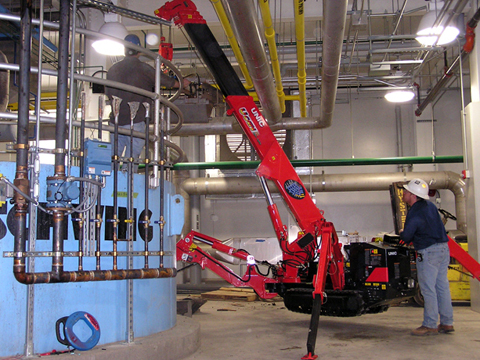

Model No. Capacity Unladen Weight Folded Dimensions L x W x H (m) Maximum Working Radius Maximum Lifting Height Mini Crane Model URW-094 0.995t x 1.5m 1000kg 1.87m x 0.595m x 1.29m 5.17m 5.6m  URW-095 0.995t x 3.5m 1850kg* 2.69m x 0.6m x 1.38m* 8.41m 8.8m  URW-295 2.9t x 1.4m 1850kg* 2.69m x 0.6m x 1.38m* 8.41m 8.8m  URW-376 2.9t x 2.5m 3850kg* 4.34m x 1.3m x 1.8m 14.45m 14.9m  URW-506* 3.0t x 3.4m 4840kg* 4.87m x 1.4m x 2.035m 15.52m 16.0m  URW-706 6.0t x 3.0m 7920kg* 5.61m x 1.6m x 2.185m 18.60m 19.5m

     * Exact values are dependant on individual crane configurations.
